Switches-Cisco Catalyst 3650 Series Switches Data Sheet-CISCO
Cisco Catalyst 3650 Series Switches Data Sheet-
the next generation of enterprise-class standalone and stackable access-layer switches

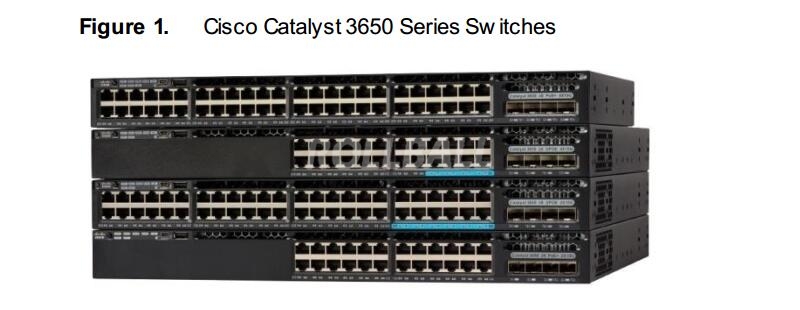

The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class
standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on
existing cabling infrastructure. The 3650 Series switches help increase wireless
productivity and reduce TCO.
Product Overview
● Integrated wireless controller capability with:
◦ Up to 40G of wireless capacity per switch (48-port models)
◦ Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack)
● 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
● 24 and 48 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps (multigigabit) Cisco UPOE and PoE+ models with EEE1
● Five fixed-uplink models with four Gigabit Ethernet, two 10 Gigabit Ethernet, four 10 Gigabit Ethernet, eight
10 Gigabit Ethernet, or two 40 Gigabit Ethernet Quad Small Form -Factor Pluggable Plus (QSFP+) ports
● 24-port and 48-port 10/100/1000 PoE+ models with lower noise and reduced depth of 11.62 inches for
shallow depth cabinets in enterprise, retail, and branch-office environments
● Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack
throughput
● Dual redundant, modular power supplies and three modular fans providing redundancy2
● Support for external power system RPS 2300 on the 3650 mini SKUs for power redundancy
● Full IEEE 802.3at (PoE+) with 30W power on all ports in 1 rack unit (RU) form factor
● Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor
● Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible
NetFlow (FNF) Version 9, and enhanced security features
● Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for
software features
● Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement
and 90-day access to Cisco Technical Assistance Center (TAC) support
Table 1 shows the Cisco Catalyst 3650 Series configurations.
| WS-C3650-24TS | 4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP) |
24 | 250 WAC | - |
| WS-C3650-48TS | 48 | |||
| WS-C3650-24PS | 24 PoE+ | 640 WAC | 390 W | |
| WS-C3650-48PS | 48 PoE+ | |||
| WS-C3650-48FS | 48 PoE+ | 1025 WAC | 775 W | |
| WS-C3650-24TD | 2 x 10 Gigabit Ethernet with SFP+ and 2 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP |
24 | 250 WAC | |
| WS-C3650-48TD | 48 | |||
| WS-C3650-24PD | 24 PoE+ | 640 WAC | 390 W | |
| WS-C3650-24PDM | 24 PoE+ | Fixed 640 WAC | 390 W | |
| WS-C3650-48PD | 48 PoE+ | 640 WAC | 390 W | |
| WS-C3650-48FD | 48 PoE+ | 1025 WAC | 775 W | |
| WS-C3650-8X24PD | 24 PoE+ (with 8 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) |
715 WAC | 435 W | |
| WS-C3650-12X48FD | 48 PoE+ (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) |
1100 WAC | 660 W | |
| WS-C3650-48TQ | 4 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP |
48 | 250 WAC | |
| WS-C3650-48PQ | 48 PoE+ | 640 WAC | 390 W | |
| WS-C3650-48FQ | 48 PoE+ | 1025 WAC | 775 W | |
| WS-C3650-48FQM | 48 PoE+ | Fixed 975 WAC | 775 W | |
| WS-C3650-8X24UQ | 24 UPOE (with 8 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) |
1100 WAC | 820 W | |
| WS-C3650-12X48UQ | 48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) |
1100 WAC | 660 W | |
| WS-C3650-12X48UR | 8 x 10 Gigabit Ethernet with SFP+ or 8 x Gigabit Ethernet with SFP |
48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) |
1100 WAC | 660 W |
| WS-C3650-12X48UZ | 2 x 40 Gigabit Ethernet with QSFP+ | 48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports) |
1100 WAC | 660 W |
Power over Ethernet Plus (PoE+)
The Cisco Catalyst 3650 Series Switches support both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at standard), which provide up to 30 W of power per port. PoE removes the need for wall power to each PoE-enabled device and eliminates the cost for additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. The 3650 Series can provide a lower TCO for deployments that incorporate Cisco IP phones, Cisco Aironet® wireless LAN (WLAN) access points, or any IEEE 802.3at-compliant end device.
Table 2 shows the power supply combinations required for different PoE needs.
| 24-Port PoE Switch | 48-Port PoE Switch | |
| PoE on All Ports (15.4 W per port) | One PWR-C2-640 WAC | One PWR-C2-1025WAC or Two PWR-C2-640 WAC |
| PoE+ on All Ports (30 W per port) | One PWR-C2-1025WAC or Two PWR-C2-640 WAC | Two PWR-C2-1025 WAC |
